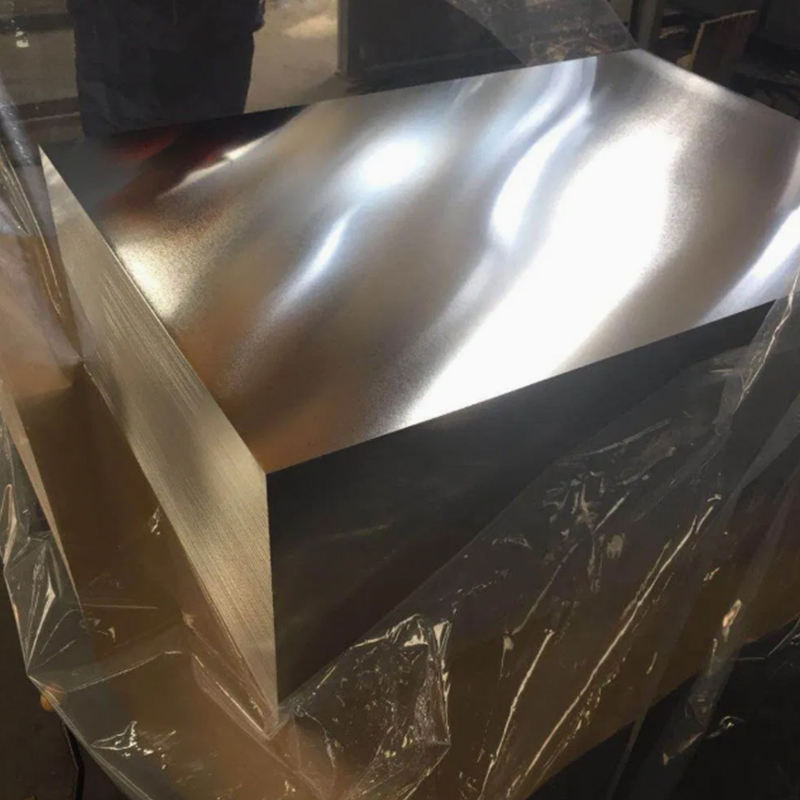

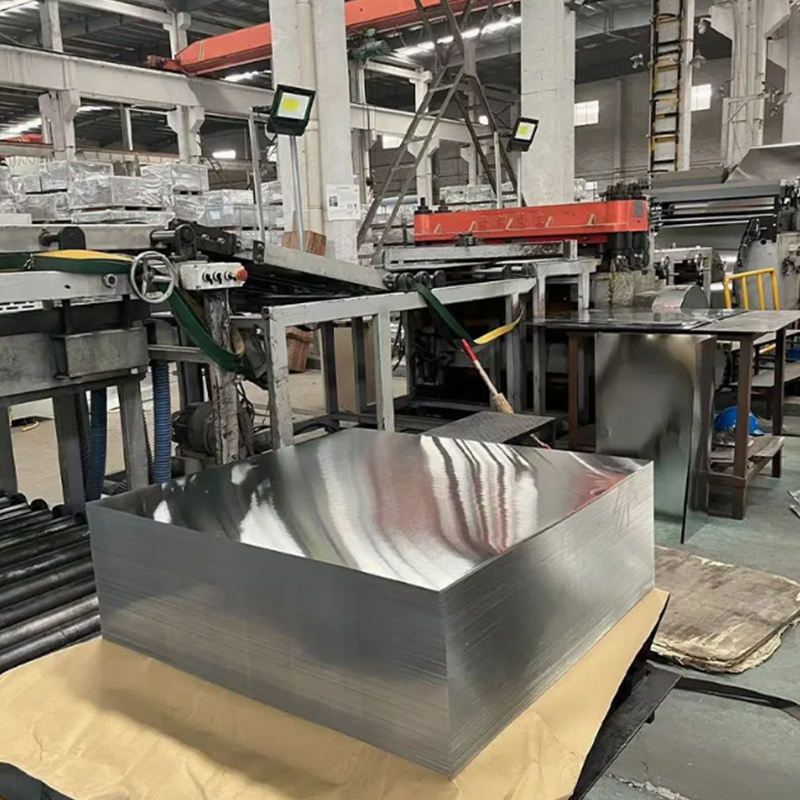

TFS Chrome Steel Plate Steel

Email：manager@fgalloysteel.com

Phone：+86 15763569125

WeChat：+86 15763569125

WhatsApp：+86 15763569125

Inquiry Now →

OVERVIEW

TFS Chrome Plate Steel Overview and Characteristics

TFS (Tin-Free Steel) is a steel material that is coated with a metal chromium layer and a chromium oxide film on the surface of a cold-rolled thin steel plate by electrolytic deposition. Unlike traditional tin-plated steel plates (tinplate), its chromium layer cannot be remelted to form a bright surface, so a special chrome coating production line is required. Its technical standards include JIS G3315, ASTM 657, GB/T 24189-2009, etc. Steel types include MR, SPCC, TYPEL, thickness range 0.14-0.50mm, width 600-1050mm, coating weight is 50-150mg/m² of metal chromium, 5-35mg/m² of chromium oxide, and the surface can be passivated to present a bright, stone-grained or silver appearance, and coated with DOS oil for rust prevention

Product Parameters

Product Name	TFS Chrome Plate
Thickness	0.18Mm-0.50mm
Width	260Mm-980mm
Length	Support customization
Tin Coating	General: 2.8g or 5.6g, can be produced according to your needs
Substrate Type	MR / SPCC / L / D
Reference Standard	GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Surface State of Tinplate

Surface State	Features
Light Surface	Electroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern
Stonetextured Surface	Electroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction
Silvercolor Surface	Electroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull
Mattless Surface	The surface of the substrate is rough and dull, and the tin plating layer is not soft melting

Substrate Type

Substrate Type	Introduction
MR	The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance
L	Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate
D	Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial
SPCC	Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.

Coating Weight

Classification	Representation of Tin Coating Weight	Tin Plating Nominal Weight (g/m2)	Minimum Average Tin Plating Weight (g/m2)
Equal Tin Plating (E)	1.1/1.1	1.1/1.1	1.8
	2.2/2.2	2.2/2.2	4.0
	2.8/2.8	2.8/2.8	5.0
	5.6/5.6	5.6/5.6	10.5
Differentiated Tin Plating (D/A)	2.2/1.1	2.2/1.1	2.0/0.9
	2.8/1.1	2.8/1.1	2.25/0.9
	5.6/1.1	5.6/1.1	5.05/0.9
	2.8/2.2	2.8/2.2	2.25/2.0
	5.6/2.2	5.6/2.2	5.05/2.0
	5.6/2.8	5.6/2.8	5.05/2.25

Chemical Composition

No.	C	Si	Mn	S	P	Cu	Ni	Cr	Mo
D	0.12	0.03	0.6	0.05	0.02	0.2	0.15	0.1	0.05
L	0.13	0.03	0.6	0.05	0.15	0.03	0.04	0.06	0.05
MR	0.13	0.03	0.6	0.05	0.2	0.2	0.2	0.1	0.05

Mechanical Properties & Applications

Standard Name	Nominal Hardness HR30TS	Strong Yield MPA	Scope of Application
T-1	49	230 /-50	Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-2	53	245 /-50	Ring and plug, dome, closure, shallow pull and special tank parts
T-2.5	55	260 /-50	Battery cell, small can cover and body
T-3	57	275 /-50	Cans and cans, large diameter caps, crown caps
T-3.5	59	290 /-50	Can body, closure and crown lid
T-4	61	340 /-50	Can body, closure and crown lid
T-5	65	480 /-50	Cans and cans

Application areas of TFS Chrome Plate steel

1. Packaging container field: It can be used to manufacture various metal packaging containers such as tea cans, coffee cans, gift boxes, cigarette boxes, etc. For example, 0.23mm thick TFS chrome-plated steel plate can be used for printing and making cigarette boxes, gift boxes and tin canstin boxes, etc. At the same time, because of its food-grade properties, it is also suitable for food packaging containers such as beverage cans, and can partially replace tinplate.

2. Industrial manufacturing field: It plays an important role in the production of metal packaging. Tianjin SWKD Metal Materials Co., Ltd. and other companies apply it to the construction of metal packaging bases, which can improve the quality and competitiveness of packaging products.

Production and processing of TFS Chrome Plate steel

1. Production process: The production needs to undergo cold rolling and other process treatments, and the surface treatment uses chrome plating and chromium oxide film covering technology. Tianjin SWKD Metal Materials Co., Ltd. is equipped with internationally advanced platemaking equipment such as Kodak CTP system, and has 8-color and 6-color UV metal printing production lines, which can print and process TFS chrome-plated steel plates

2. Processing characteristics: It has good printing performance and is suitable for multi-color UV metal printing, which can meet the design requirements of different packaging products. Its temper is divided into single rolling (T1-T5) and double rolling (DR8-DR9-DR10), and the appropriate specifications can be selected according to the specific application scenario.

PRODUCT DISPLAY

CERTIFICATE

CUSTOMER FEEDBACK

FAQ

Q1: Are You Manufacture or Trade Company?
A1: We are the professional manufacturer of stainless steel, carbon steel, aluminum products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q2: How do you guarantee the quality?
A2: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q3: Can I get free samples?
A3: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q4: What is the MOQ?
A4: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q5: Can you OEM or ODM?
A5: Yes, we have a strong developing team. The products can be made according to your request

Q6:What are the certifications for your products?
A6:We have ISO 9001, SGS, EWC and other certifications.
