Titanium Grade 2 Steel Plate

Email：manager@fgalloysteel.com

Phone：+86 15763569125

WeChat：+86 15763569125

WhatsApp：+86 15763569125

Inquiry Now →

OVERVIEW

Product Parameters

Product Name	Titanium Grade 2 Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling

Chemical Composition & Mechanical Properties

STM/ASME		GB	JIS	Element Content（wt%）						Mechanical Properties
				N,max	C,max	H,max	Fe,max	O,max	Others	Strength Of Extension	Ductility
										Mpa,min	%，min
Pure Titanium	Gr.1	TA1	Class1	0.03	0.08	0.015	0.2	0.18	-	240	24
	Gr.2	TA2	Class2	0.03	0.08	0.015	0.3	0.25		345	20
	Gr.3	TA3	Class3	0.05	0.08	0.015	0.3	0.35		450	18
	Gr.4	TA4	Class4	0.05	0.08	0.015	0.5	0.4		550	15
Titanium Alloy	Gr.5	TC4	Class60	0.05	0.08	0.015	0.4	0.2	AI:5.5-6.75	895	10
		Ti-6A1-4V							V:3.5-4.5
	Gr.7	TA9	Class12	0.03	0.08	0.015	0.3	0.25	Pd:0.12-0.25	345	20
	Gr.9	TC2	Class61	0.03	0.08	0.015	0.25	0.15	AI:2.5-3.5	620	15
									V:2.0-3.0
	Gr.11	TA9-1	Class11	0.03	0.08	0.015	0.2	0.18	Pd:0.12-0.25	240	24
	Gr.23	TC4 ELI	Class60E	0.03	0.08	0.0125	0.25	0.13	AI:5.5-6.5	828	10
									V:3.5-4.5

Processing performance

1. Cold working: Titanium Grade 2 is easy to cold work and can be precisely formed and processed.

2. Machining: It can be machined using conventional methods, but its high hardness and melting point need to be noted.

3. Welding: MIG and TIG welding are the preferred methods, usually using an argon-helium gas mixture for best results. And the side in contact with the medium adopts the TIG welding method with inert gas protection.

Application fields

1. Chemical industry: used to manufacture reactors, heat exchangers and piping systems because it can resist a variety of corrosive chemicals.

2. Oil and gas field: used for equipment under extreme conditions, requiring high corrosion resistance and salt environment resistance.

3. Medical field: biocompatibility and corrosion resistance make it an ideal choice for surgical implants and instruments

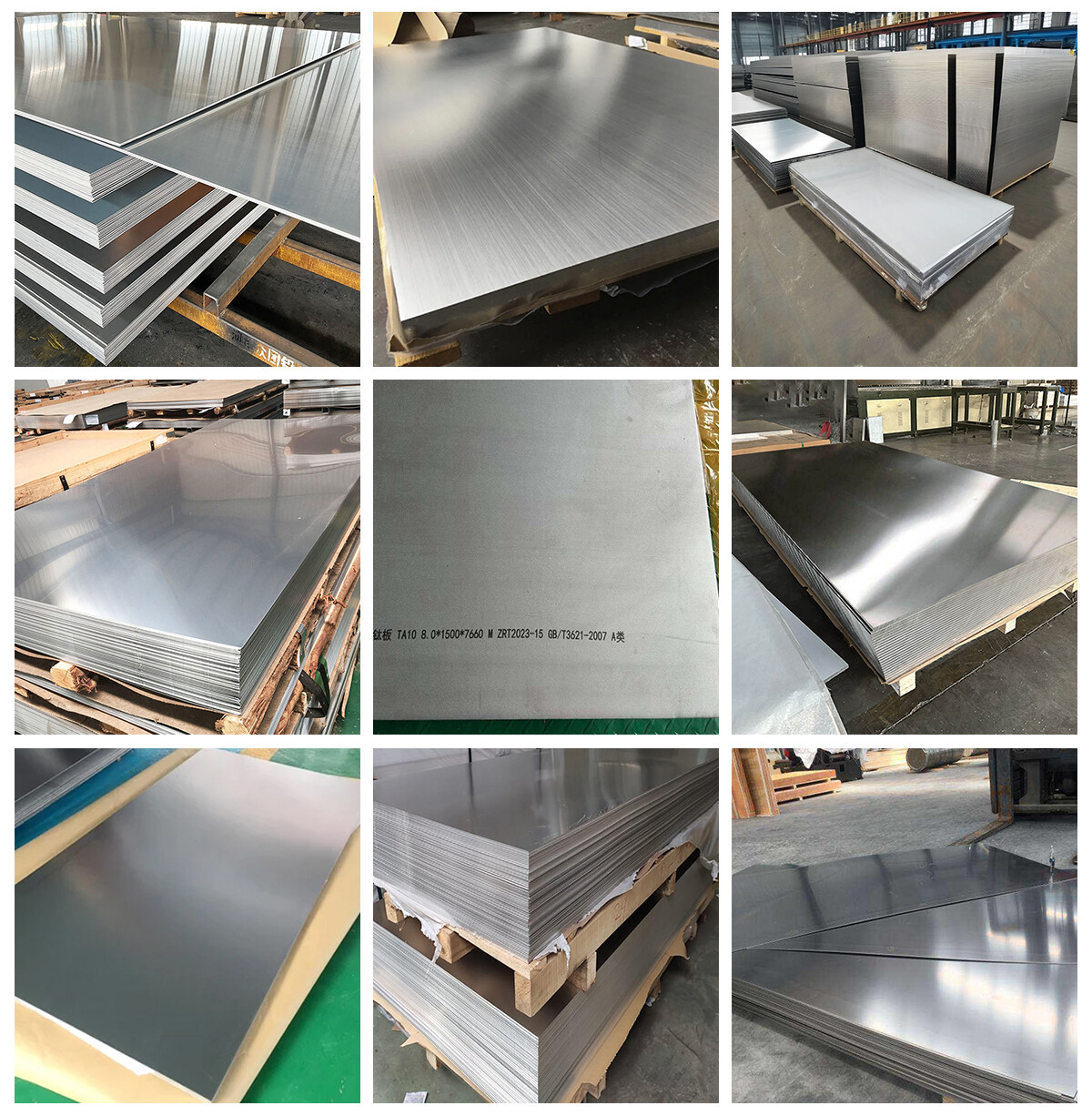

PRODUCT DISPLAY

CERTIFICATE

CUSTOMER FEEDBACK

FAQ

Q1: Are You Manufacture or Trade Company?
A1: We are the professional manufacturer of stainless steel, carbon steel, aluminum products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q2: How do you guarantee the quality?
A2: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q3: Can I get free samples?
A3: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q4: What is the MOQ?
A4: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q5: Can you OEM or ODM?
A5: Yes, we have a strong developing team. The products can be made according to your request

Q6:What are the certifications for your products?
A6:We have ISO 9001, SGS, EWC and other certifications.
