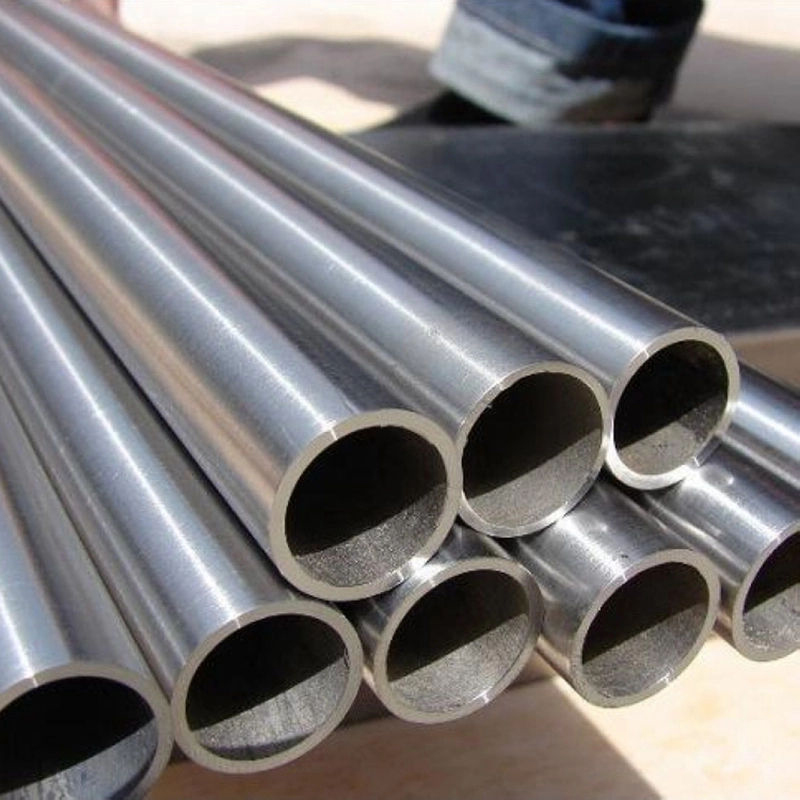

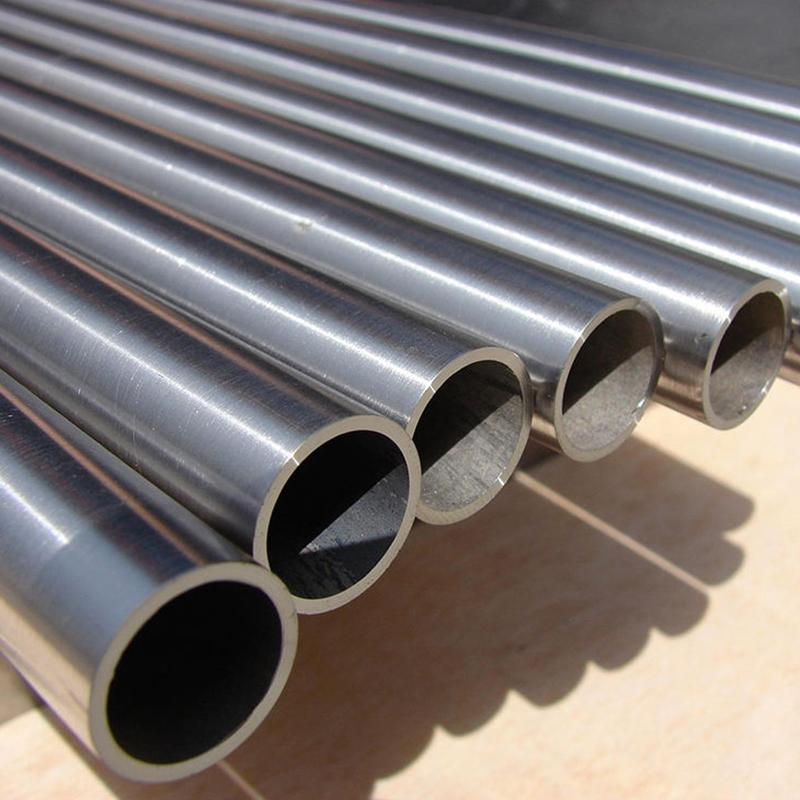

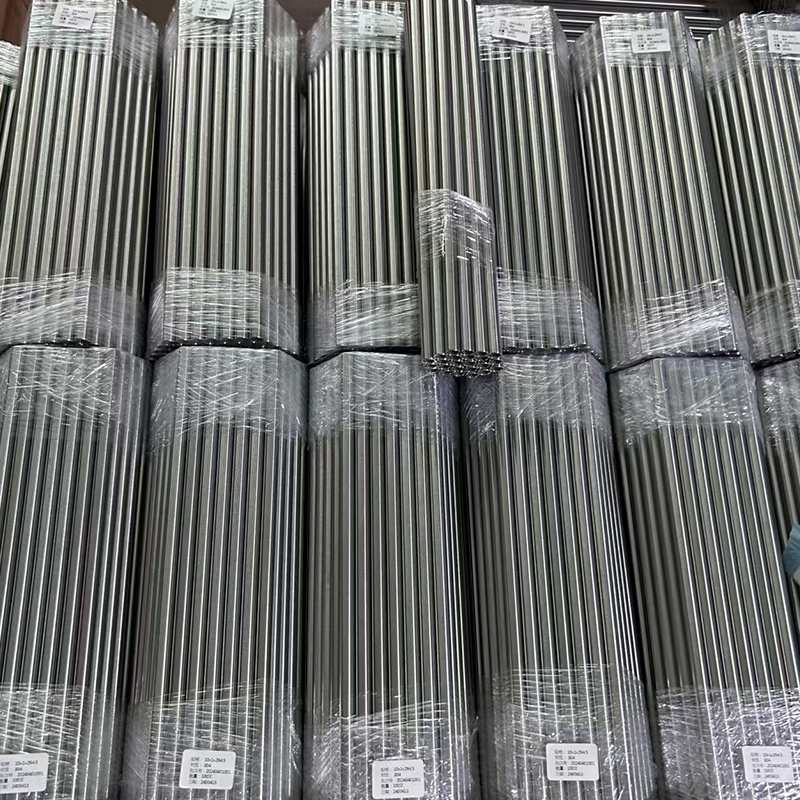

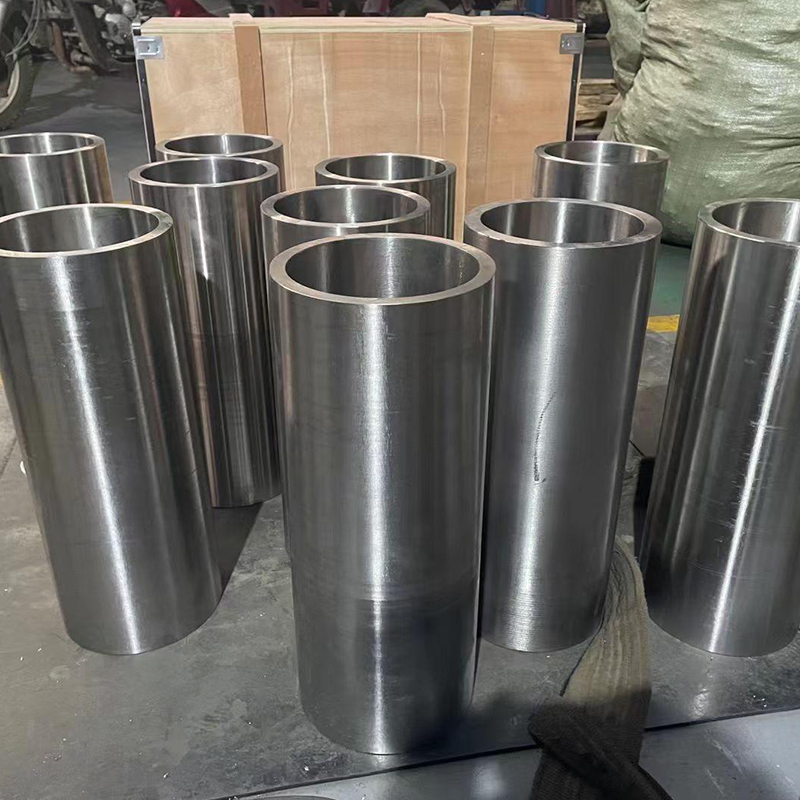

Composition of Titanium Grade 9 alloy tube

Titanium Grade 9 alloy tube is a titanium alloy tube close to α and α-β types. It is mainly composed of titanium, aluminum, vanadium, iron and other elements. The specific nominal composition is: aluminum (Al) content 2.5-3.5%, vanadium (V) content 2.0-3.0%, iron (Fe) content up to 0.30%, and the rest is titanium (Ti) balance. It also contains a small amount of oxygen (O≤0.12%), carbon (C≤0.050%), hydrogen (H≤0.02%), yttrium (Y≤0.005%) and other impurity elements

Product Parameters

Chemical Composition & Mechanical Properties

Performance characteristics of Titanium Grade 9 alloy tube

1. Physical properties: density is 4.48 g/cm³, elastic modulus at 20°C is 107GPa, thermal conductivity is 7.6W/mK, linear expansion coefficient is 7.9µm/m-°C24 in the range of 20°C to 500°C.

2. Mechanical properties: The minimum tensile strength is 621MPa, and the typical value can reach 752MPa. It has good strength and toughness, and has excellent plasticity and welding performance. It can be welded like pure titanium (CP grade).

3. Corrosion resistance: It has excellent corrosion resistance and can work stably in a variety of environments.

Working temperature range: recommended working conditions are -184°C to 540°C (-300°F to 1000°F), and it can maintain good strength at moderate temperatures

Application fields of Titanium Grade 9 alloy tubes

Titanium Grade 9 alloy tubes are widely used in many fields due to their excellent comprehensive properties:

1. Aerospace field: Due to its high strength and light weight, it can be used to manufacture aircraft parts, engine parts and spacecraft structures.

2. Medical field: Good biocompatibility, can be used to manufacture tubular parts related to human implants, and can provide the necessary strength and stability for implants.

3. Marine field: With excellent corrosion resistance, it is suitable for pipeline systems in marine environments.

4. Processing and chlorate manufacturing fields: It can be used for pipeline transportation in related production processes.

5. Dimensionally stable anode and seawater desalination fields: In these fields, it can play its performance advantages and be used for the manufacture of related tubular structures

Analysis of advantages and disadvantages of Titanium Grade 9 alloy tubes

Advantages

Lightweight: Low density, which helps to reduce the weight of the structure.

High strength: It has high tensile strength and can meet the strength requirements under various working conditions.

Corrosion resistance: It shows good corrosion resistance in various environments.

Good biocompatibility: It is suitable for the manufacture of related products in the medical field.

Excellent welding performance: It is easy to carry out welding processing.

Disadvantages

High processing difficulty: Titanium alloy materials themselves are difficult to process, which increases the manufacturing complexity of alloy tubes.

High cost: The material price is relatively high, resulting in high manufacturing costs
