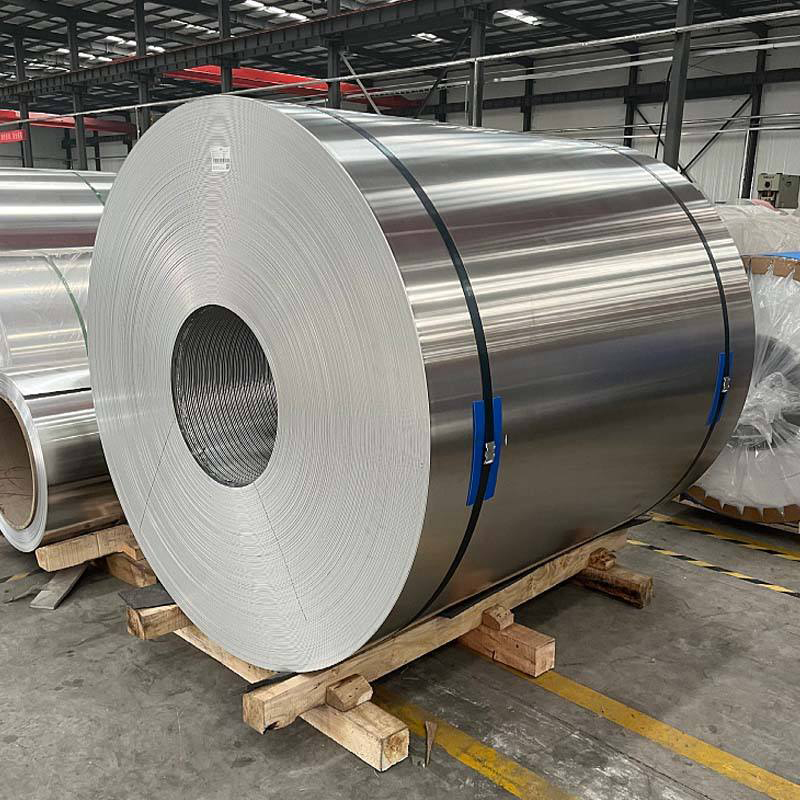

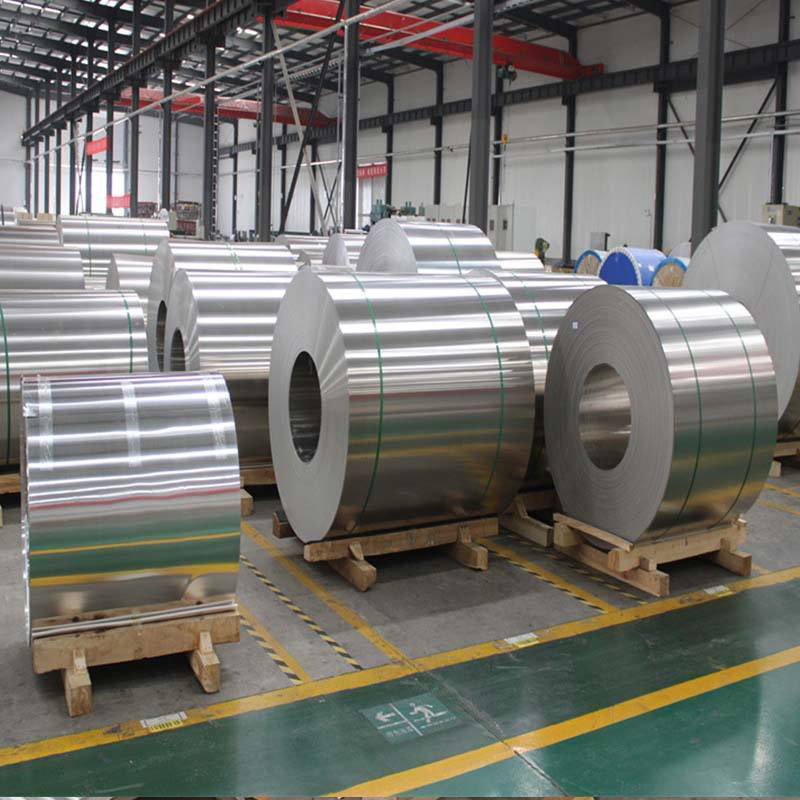

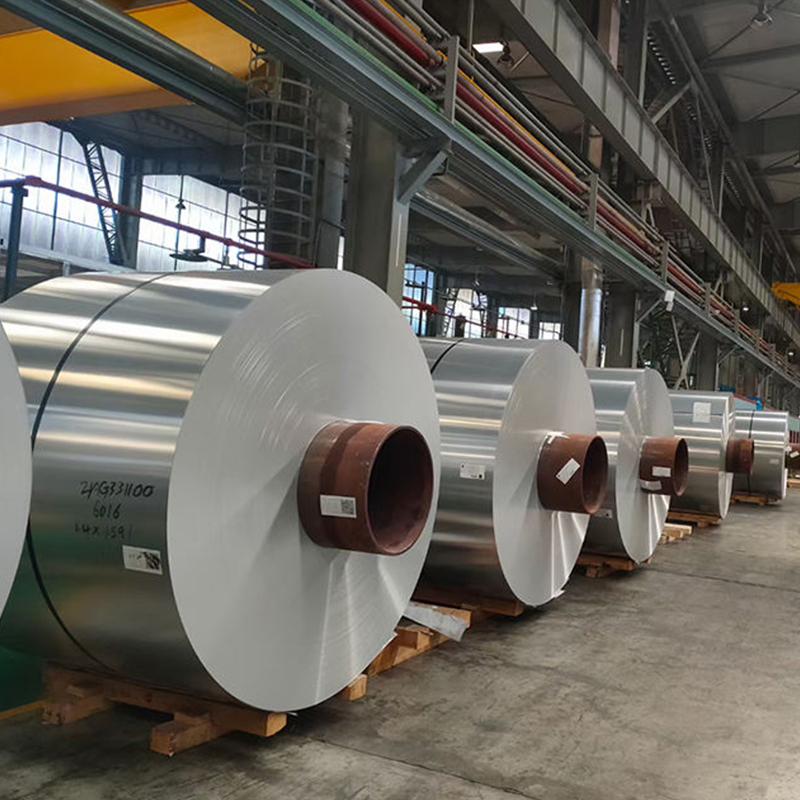

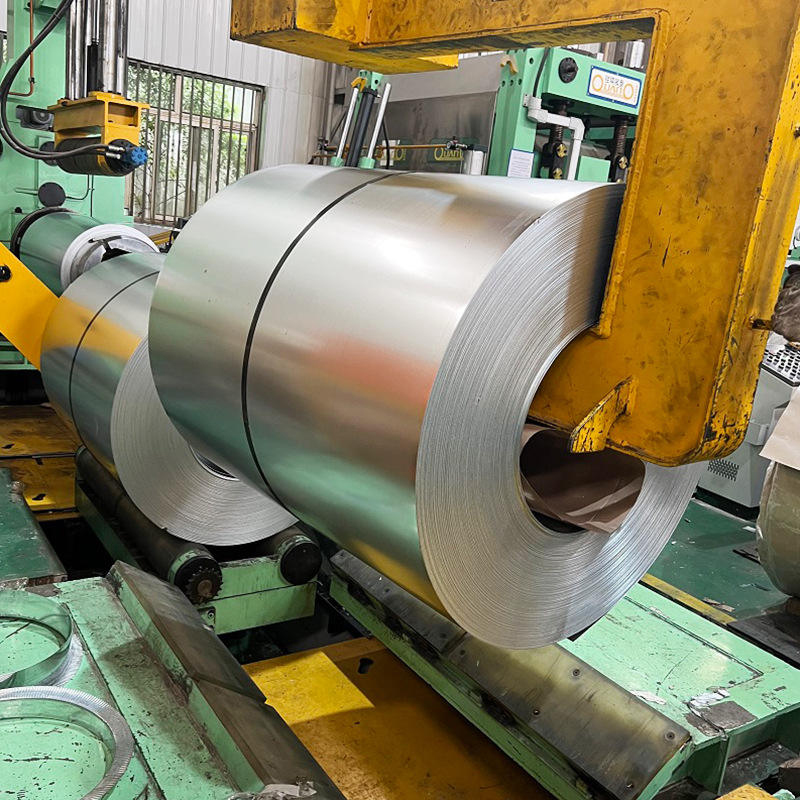

Single Reduced Cold-Rolled Tinplate Steel Coil

Email：manager@fgalloysteel.com

Phone：+86 15763569125

WeChat：+86 15763569125

WhatsApp：+86 15763569125

Inquiry Now →

OVERVIEW

Overview of single cold-rolled tin-plated steel coils

Single cold-rolled tin-plated steel coils are one of the important categories of cold-rolled steel sheets. They have good corrosion resistance and processing performance and are widely used in food packaging, canning and other fields.

Product Parameters

Product Name	Single Reduced Cold-Rolled Tinplate Coil
Thickness	0.18mm-0.50mm
Width	260mm-980mm
Length	Support customization
Tin Coating	General: 2.8g or 5.6g, can be produced according to your needs
Substrate Type	MR / SPCC / L / D
Reference Standard	GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Surface State of Tinplate

Surface State	Features
Light Surface	Electroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern
Stonetextured Surface	Electroplating tin raw material with the glaze obtained after melting treatment, Grindstone pattern with certain direction
Silvercolor Surface	Electroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull
Mattless Surface	The surface of the substrate is rough and dull, and the tin plating layer is not soft melting

Substrate Type

Substrate Type	Introduction
MR	The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance
L	Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate
D	Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial
SPCC	Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.

Coating Weight

Classification	Representation of Tin Coating Weight	Tin Plating Nominal Weight (g/m2)	Minimum Average T in Plating Weight (g/m2)
Equal Tin Plating (E)	1.1/1.1	1.1/1.1	1.8
	2.2/2.2	2.2/2.2	4.0
	2.8/2.8	2.8/2.8	5.0
	5.6/5.6	5.6/5.6	10.5
Differentiated Tin Plating (D/A)	2.2/1.1	2.2/1.1	2.0/0.9
	2.8/1.1	2.8/1.1	2.25/0.9
	5.6/1.1	5.6/1.1	5.05/0.9
	2.8/2.2	2.8/2.2	2.25/2.0
	5.6/2.2	5.6/2.2	5.05/2.0
	5.6/2.8	5.6/2.8	5.05/2.25

Chemical Composition

No.	C	Si	Mn	S	P	Cu	Ni	Cr	Mo
D	0.12	0.03	0.6	0.05	0.02	0.2	0.15	0.1	0.05
L	0.13	0.03	0.6	0.05	0.15	0.03	0.04	0.06	0.05
MR	0.13	0.03	0.6	0.05	0.2	0.2	0.2	0.1	0.05

Mechanical Properties & Applications

Standard Name	Nominal Hardness HR30TS	Strong Yield MPA	Scope of Application
T-1	49	230 /-50	Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-2	53	245 /-50	Ring and plug, dome, closure, shallow pull and special tank parts
T-2.5	55	260 /-50	Battery cell, small can cover and body
T-3	57	275 /-50	Cans and cans, large diameter caps, crown caps
T-3.5	59	290 /-50	Can body, closure and crown lid
T-4	61	340 /-50	Can body, closure and crown lid
T-5	65	480 /-50	Cans and cans

Main classification method

Based on the surface state: divided into glossy surface (treated by tin dissolution) and matte surface (untreated), the original plate surface patterns include smooth, directional grinding stone pattern, rough matte and other types.

According to the degree of tempering: It is divided into several grades according to the Rockwell hardness (HR30T), such as T2 (46-52, for deep drawing cans), T3 (54-60, for general empty can bodies), etc.

According to the tinning amount: divided into equal thickness tinning (such as E1.1/1.1, nominal tinning amount 1.1g/m²) and differential thickness tinning (such as D5.6/2.8, double-sided tinning amount is 5.6g/m² and 2.8g/m² respectively)

Product application areas

Baosteel electroplated tinplate (tinplate) is a food-grade material, widely used in food and beverage containers, precision electronics, machinery manufacturing and other fields. Its high-end products such as DI material and K plate can meet the needs of deep drawing processing.

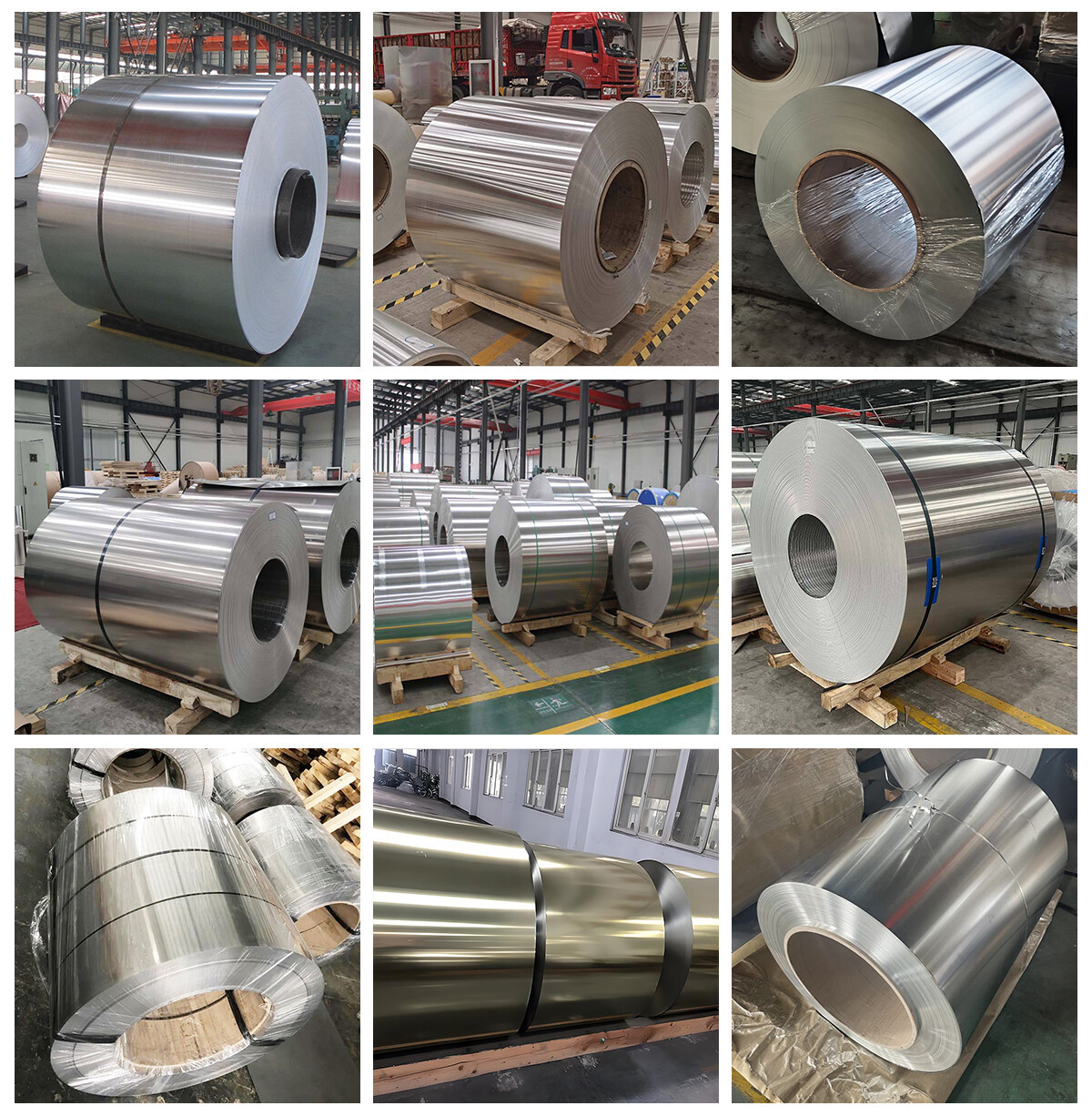

PRODUCT DISPLAY
