Basic information and material properties

Nickel Alloy 201, also known as N02201 or W.Nr.2.4061, is a pure commercial nickel alloy with extremely low carbon content. It has excellent corrosion resistance, welding performance and processing performance. Its physical density is 8.89g/cm³ and it can be stably used in high temperature environments up to 1230℃. The mechanical properties of this material change with the processing state. The tensile strength of the annealed product at room temperature is about 45-80N/mm², the yield strength is 15-30N/mm², and the elongation is 15-40%. The cold-drawn state shows higher strength

Product Parameters

Chemical Composition

Mechanical Properties

Physical Performance

Implementation standards:

UNS N02201

DIN W.Nr.2.4061

Domestic corresponding brand N4

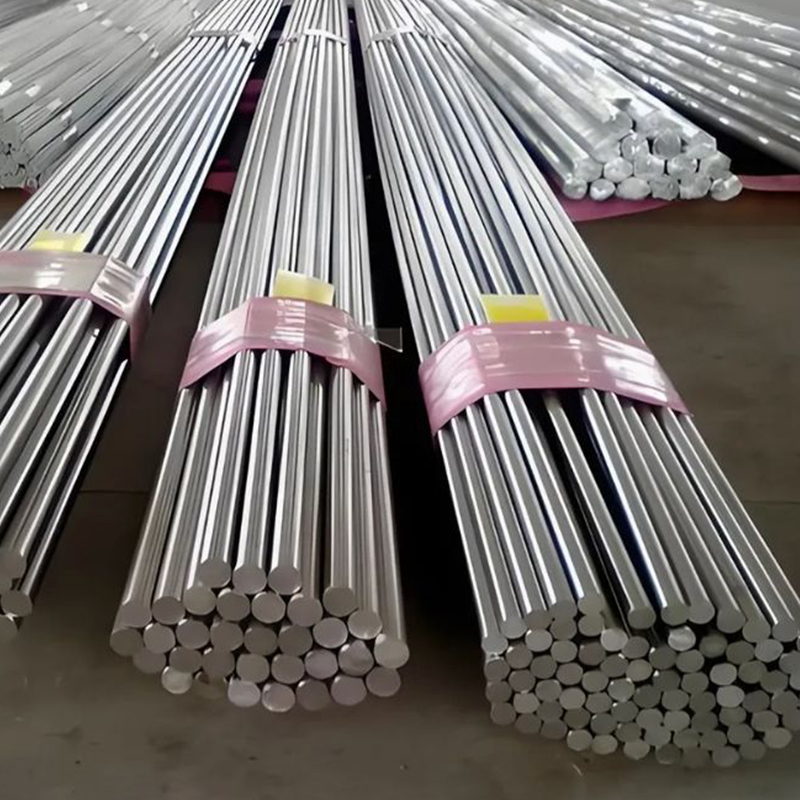

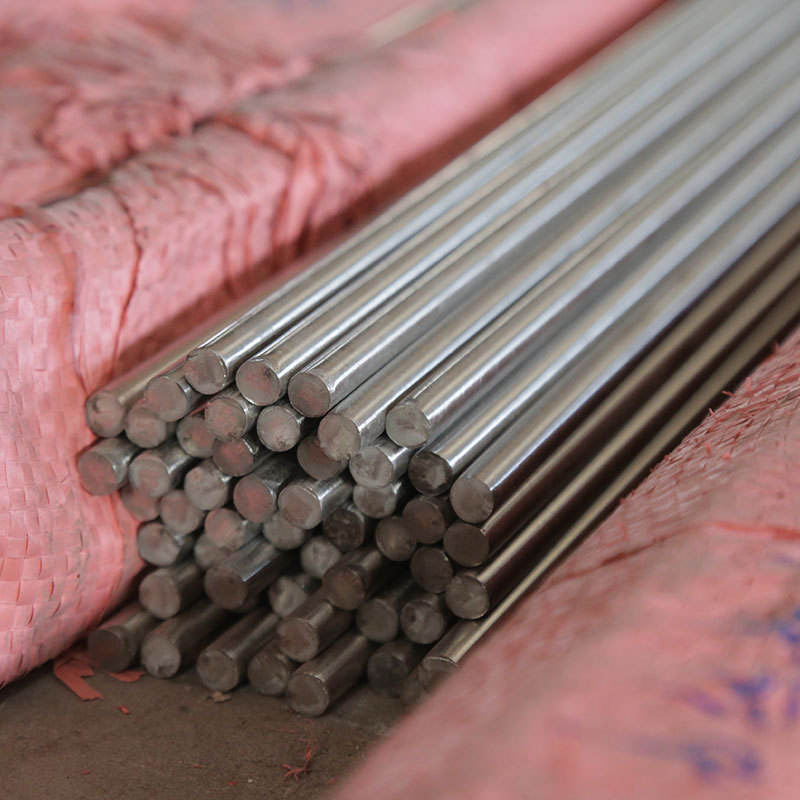

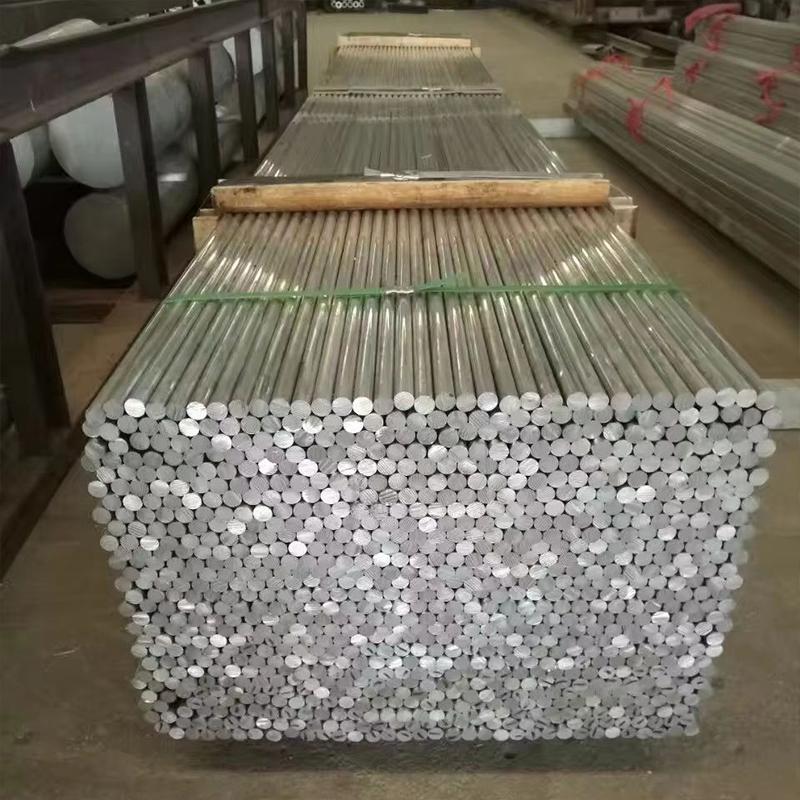

Common specification range (bar)

Diameter: Φ1.6mm to Φ200mm (special size can be customized)

Length: standard 6 meters or customized according to demand

Surface state: black skin, cold-drawn round, forged blank

Typical application areas

Chemical industry: caustic soda corrosion resistant equipment, chloride/fluoride production equipment

Food processing: salt refining equipment, catering kitchenware

Energy field: nuclear reactor components, high-temperature heat treatment furnace curved neck bottle

Marine engineering: mining and seawater desalination equipment
