OVERVIEW

Basic information of Docol 1500M martensitic steel

Docol 1500M is a high-strength martensitic steel, mainly used in the field of automobile manufacturing. It has high tensile strength and forming performance and is suitable for the processing of key automotive structural parts.

Mechanical Properties

Steel Grade

Standard

Plating

Test Direction

Yield Strength Rp0.2

(MPa)

Tensile Strength Rm

(MPa)

Extension Rate A80

(min %)

BH2

(Min MPa)

90 ° Bend the Most

Small Bend Inner Diameter

Docol CR1220Y 1500T-MS

VDA239-100: 2016

UC, eg.

L

1220-150

1500-1750

3

30

4.0.5xt


Chemical Composition

C

(max %)

Si

(max %)

Mn

(max %)

P

(max %)

S

(max %)

Al

(min %)

Nb Title

(max %)

Cr Mo

(ma%)

B

(max %)

Cu

(max %)

0.28

0.40

1.30

0.020

0.010

0.015

0.10

1.00

0.20

0.010


Plating

Plating Type

Plating Grade

Standard

Single-sided coating quality, single-point test (g/m2)

Single side thickness, for reference only(μm)

EG

ZE25/25

EN 10152

12-

1.7-

EG

ZE25/50

EN 10152

29-

4.1-

EG

ZE25/75

EN 10152

47-

6.6-

EG

ZE25/100

EN 10152

65-

9.1-

Product specifications and supply forms

Spot specifications: Common thickness range is 0.5mm to 2.7mm, width includes 920mm, 960mm, 1150mm, 1250mm, etc., and the length is mostly coil (C represents coil), such as 2.7×960×C, 2.6×920×C, 0.5×1250×C, etc.

Processing service: Supports customized samples, opening, striping, stamping, bending and other deep processing, and can provide special-shaped parts such as trapezoidal plates according to needs

Core application scenarios

This material is mainly used for automotive parts, such as body structural parts, safety parts, etc., and can also be extended to metal products, machinery manufacturing, rail transportation and other fields. Its high strength properties help reduce vehicle weight and improve collision safety, meeting the automotive industry's demand for lightweight and high-performance materials.

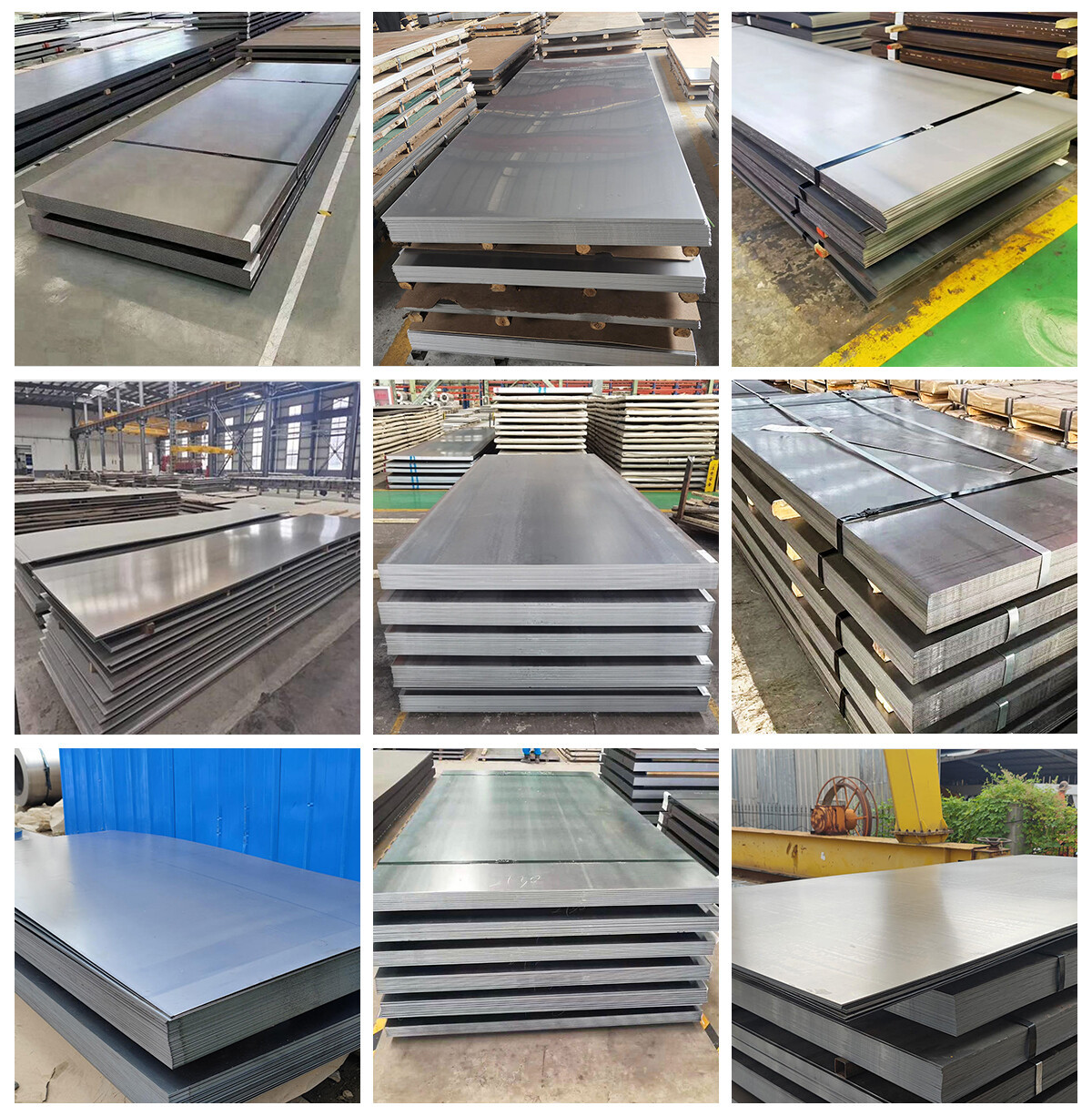

PRODUCT DISPLAY

未标题-6


CERTIFICATE

  • 质量管理体系证书英文-方格金属制品(山东)有限公司_01(1)
  • TD51372501(1)
  • 质量管理体系证书中文-方格金属制品(山东)有限公司_01(1)

CUSTOMER FEEDBACK


FAQ

Q1: Are You Manufacture or Trade Company?
A1: We are the professional manufacturer of stainless steel, carbon steel, aluminum products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.



Q2: How do you guarantee the quality?
A2: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.



Q3: Can I get free samples?
A3: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q4: What is the MOQ?
A4: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.



Q5: Can you OEM or ODM?
A5: Yes, we have a strong developing team. The products can be made according to your request



Q6:What are the certifications for your products?
A6:We have ISO 9001, SGS, EWC and other certifications.



INQUIRY

To learn more about this product, you can submit your requirements here

SUBMIT MESSAGE
